HIGHPACK MACHINERY SDN. BHD., Penang, Malaysia – Manufacturer of Packing Packaging Machine, Multihead Weigher, Scale, Inspection Control

Honorable Recognition:

HIGHPACK MACHINERY SDN. BHD.

We are professional, competitive and competent in our service

PRODUCTS & SERVICES

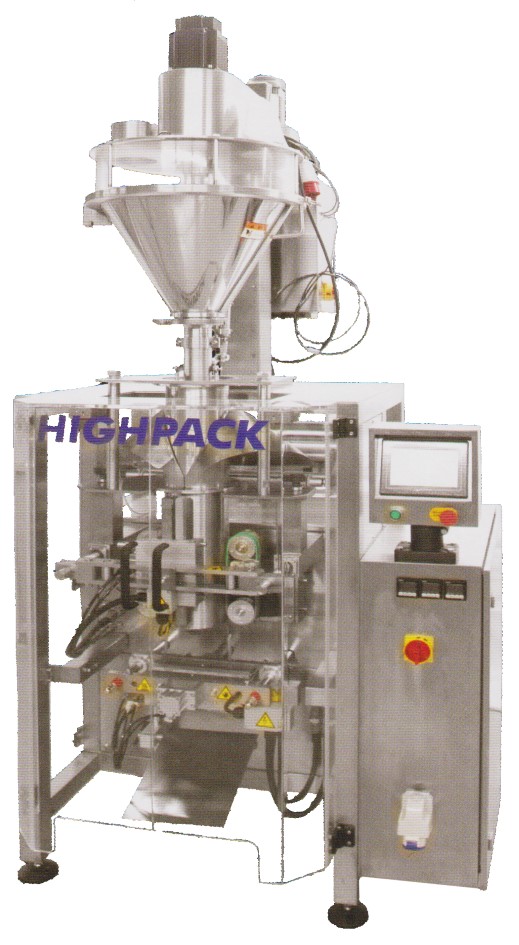

Automatic Vertical Packing Machine [Belt Driving with Servo Motor]

Model : HSY-VM600AF

Packing method :

Pillow

Pillow punch-hole

Pillow chain

Main Features

The Hopper Could Be Washed Easily Without Tool
Servo Motor Drive Screw
Stainless Steel Structure
Handwheel Of Adjustable Height
Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule

Technical Specification

model	HSY-VM600	HSY-VM800	HSY-VM900
Packing Speed	Max : 85 Bags/Min	Max : 70 Bags/Min	Max : 60 Bags/Min
Width	Max : 250MM	Max : 300MM	Max : 350MM
Length	Max : 320MM	Max : 450MM	Max : 500MM
Air Consumption	6KG / CMP
Air Consumption	0.25 Mp/Min	0.30 Mp/Min	0.25 Mp/Min
Power Consumption	Single Phase 230V / Three Phase 415
Power Consumption	2.5 KW	3.0 KW	3.5 KW
Material	Construction Material AISI 304 & Anticorodal Aluminium
Machine Weight	650KG	750KG	850KG
Dimension	W 1160MM x L 1254MM x H 1460MM	W 1280MM x L 1520MM x H 1750MM	W 1440MM x L 1520MM x H 2000MM
Packing Weight	10 - 2000G	10 - 3000G	10 - 4000G
Weight Accuracy	0.3 - 2% ±	0.3 - 2% ±	0.3 - 2% ±
