Packing method :

Pillow


Gusseted


Block Bottom


Pillow chain

Main Features

• Packaging Versatility

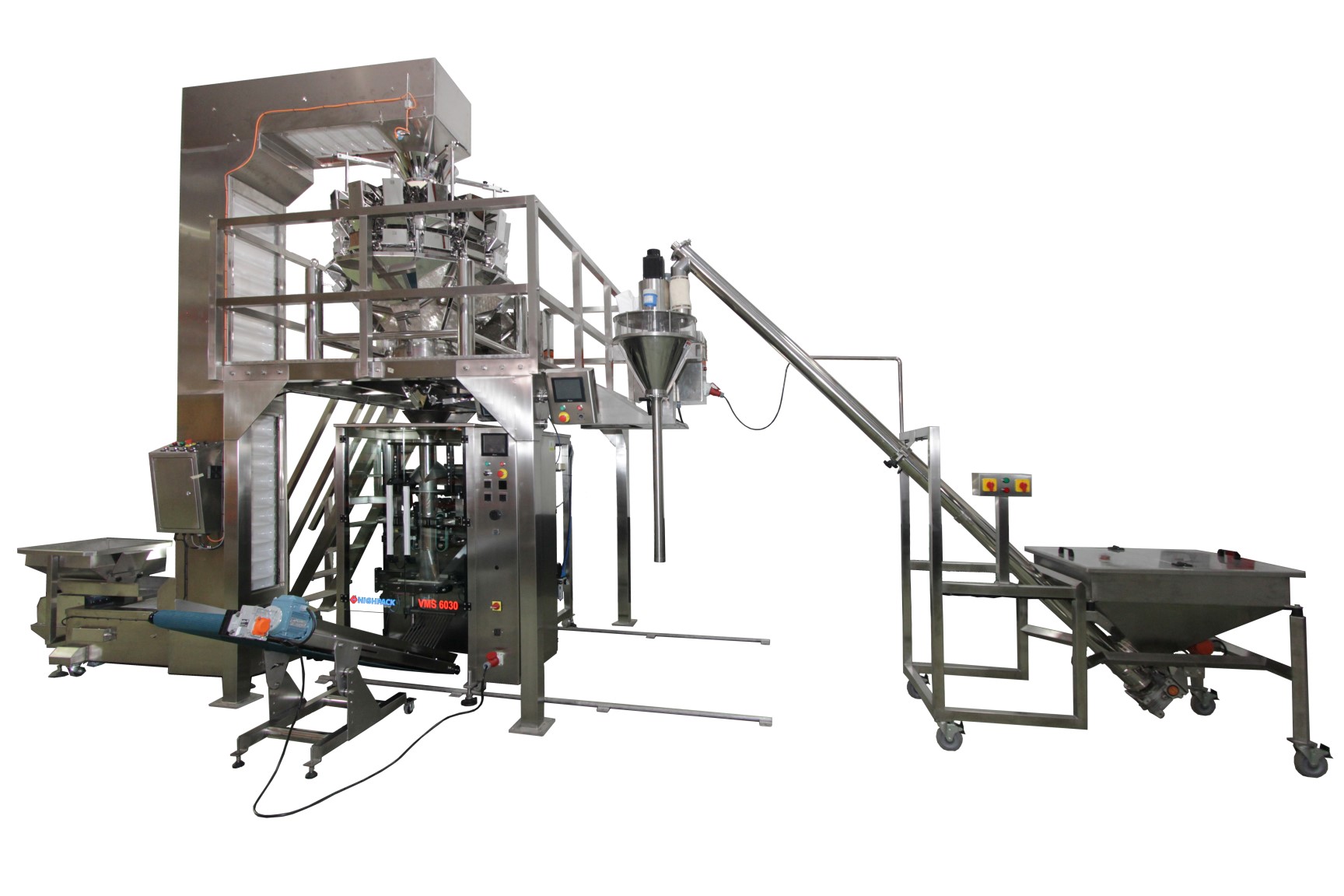

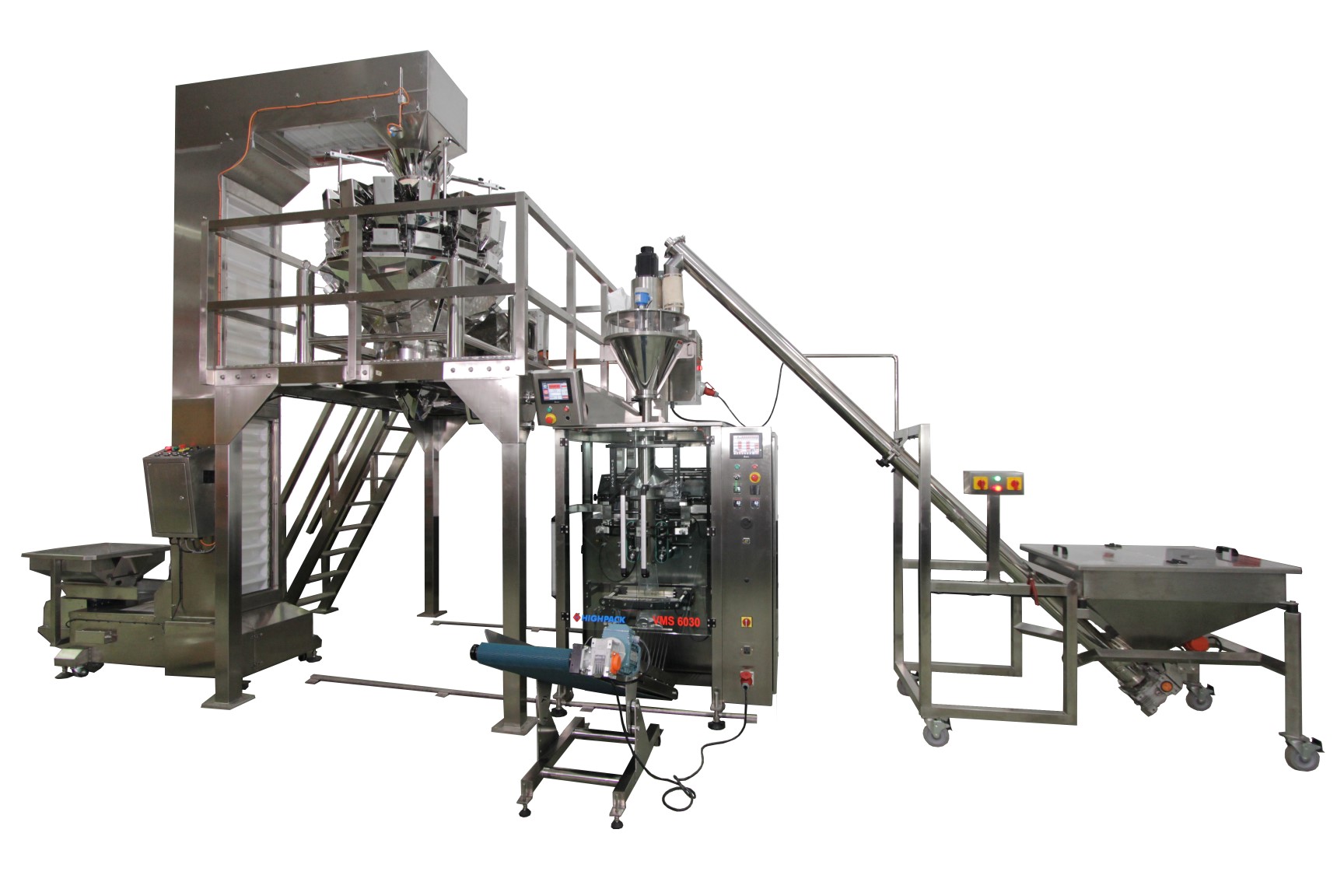

  The HSY-VMS6035MW14+AF is capable of performing multiple standard bag styles, such as pillow bags, side gusseted bags and stand up block bottom bags.
• Application Versatility
  The HSY-VMS6035MW14+AF, consisted 2 system combined for providing versatile and achieving full utilization.
  >> Multihead weighing system, which were used to be weighing certain vegetables, then constantly expanded exponentially applied on rapid weighing of snakcks and confectionery into bags, in commons of flowed easuly through machine and into the pack, with no more encouragement than gravity and moderate level of vibration of feeders.
  >> Screw auger system, which was engineered for industrial processing of dry material in either continuous or batching operations. The industrial screw feeders we manufactire are used in a wide range of material handling applications, either in free-flowing such as pallets and powders, or more difficult moving suck as pigments, fiblers and sticky or lumped material.
  Machine designed to package an unlimited variety of products, suck as granules (eg. coffee granules), bakery and confectionery (eg. Biscuit, chocolates), loose tea, real meal complex product (eg. Rice, meat, vegetables) as well as pet food and non-food products.
• Function Versatility
  Reliable and accurate servo motors for all machine functions. From the wrapping material in-feed to bag forming, sealing the seams, up to the filling. The accurate product dosing is performed immediately after the bottom sealing.Combination with weighing and Auger makes convenience and achieving utilization of machine usage in order to achieve cost saving in long term.
• Film Material Versatility
  The flexible machine offers heat-sealing and poly-sealing options, with freely adjustable sealing temperature according to product specification.
• Easy Integration
  The modular machine design of HSY-VMS6035 with various up and downstream interfaces allows for easy integration of: dosing devices (screw augers, weightier, cup-fillers, liquid pumps), coffee valve applicators, gas flushing, printers, labellers as well as check-weightier and metal detector.
• Machine Design
  The low machine height facilitates a compact product stream, leading to higher speed and increased efficiency and ergonomics.
• Module ++
  As part of the Highpack Packaging Technology portfolio, the modular machine design of the HSY-VMS6035MW14+AF allows an easy integration with other packaging equipment such as Robots or case packers for secondary packaging.

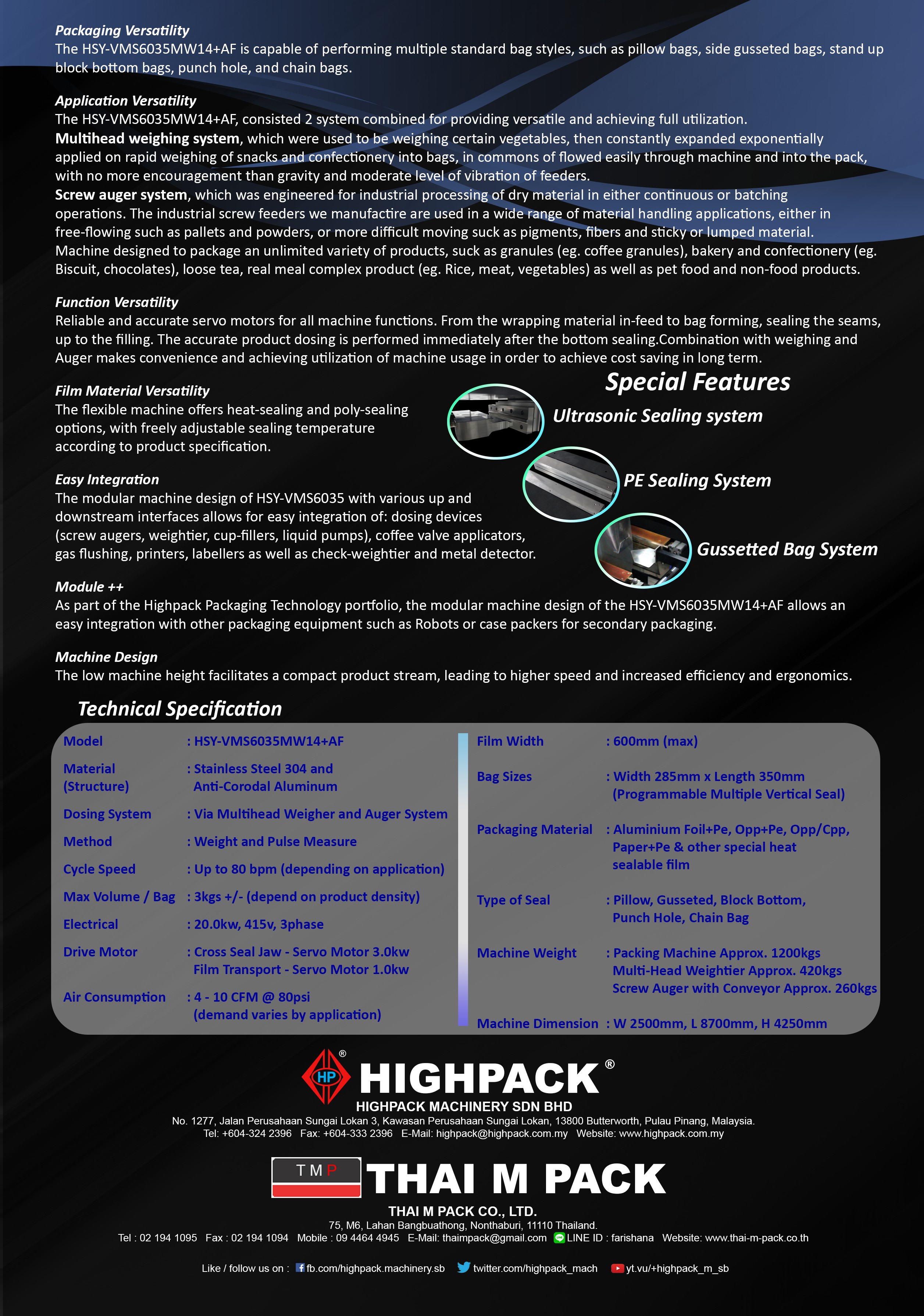

Technical Specification
