• Machine with high capabilities in metal shape cutting process
• reliable machine resulted in a consistent and high efficiency production
• cutting process with precision job to ensure quality output

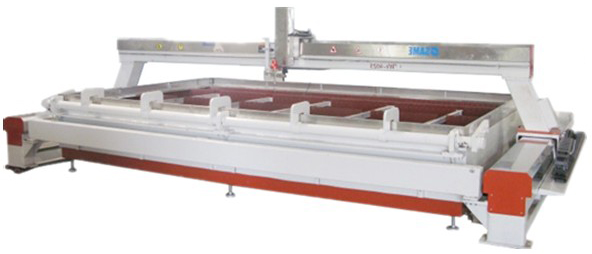

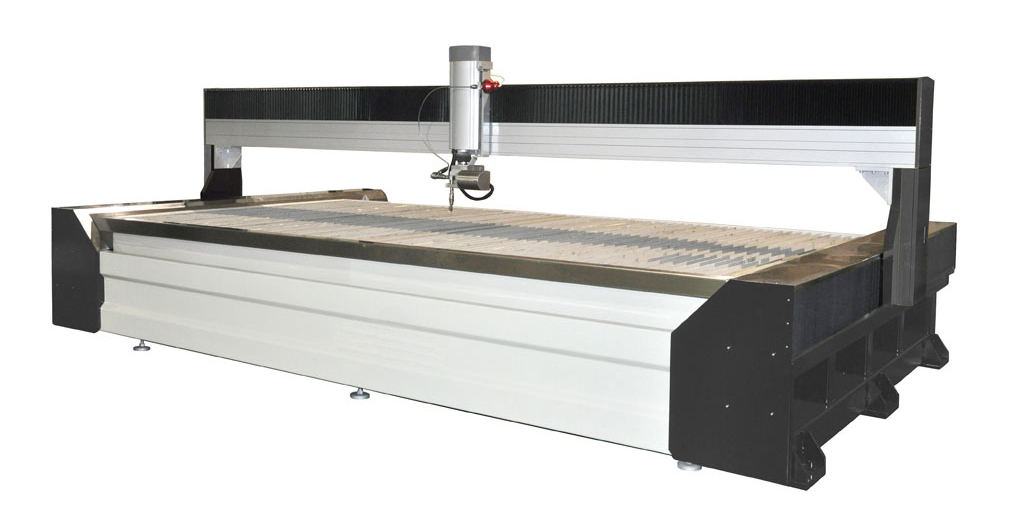

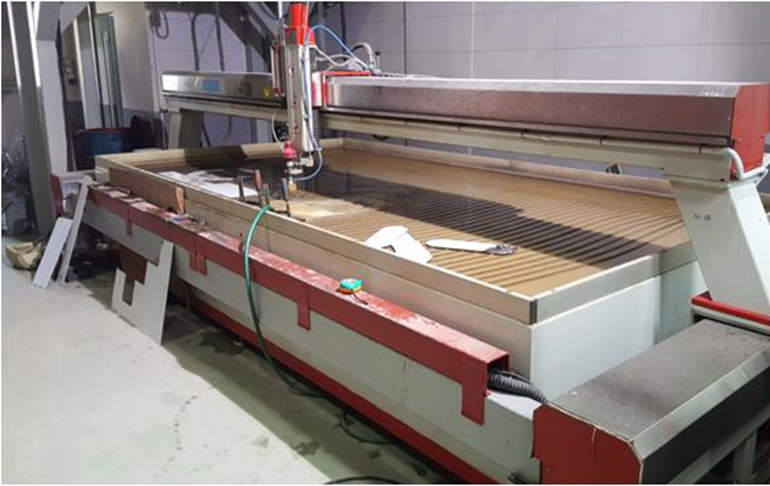

model : SAME 50HB-4020 CNC Gantry Type Waterjet Cutting Machine
Cutting area : 4.0m x 2.0m
Max moving speed : 10000mm/min
Control accuracy : +/- 0.01
Cutting accuracy : +/- 0.1 ~ +/- 0.2
Pump model : 50HB
Max pressure : 420Mpa
Working pressure : 350-380MPa
Power requirement : 37KW 380V/50HZ
Max. oil discharge : 104 L/min
Max.water flow rate : 3.7 L/min
Max. diameter of orifice : 0.33mm





---



model : SAME 50HB-4020
Cutting area : 4.0m x 2.0m
Max moving speed : 10000mm/min
Way of drive : AC servo
Control accuracy : +/- 0.01
Cutting accuracy : +/- 0.1 ~ +/- 0.2
Pump model : 50HB
Max pressure : 420Mpa
Working pressure : 350-400MPa
Power requirement : 37KW 380V/50HZ
Max. oil discharge : 104 L/min
Max.water flow rate : 3.7 L/min
Max. diameter of orifice : 0.35mm
